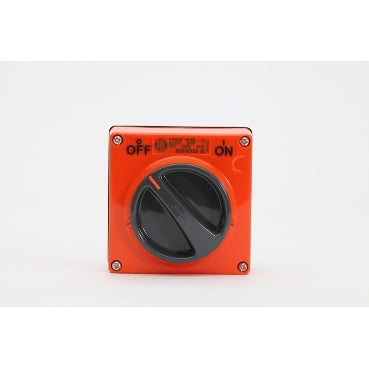

Switch 20A 3P 500V IP66 Orange

Switch 20A 3P 500V IP66 Orange

by PDL by Schneider Electric
Ideal Part Number PDL56SW320OR Manufacturer Number PDL56SW320LERO Barcode 9416175040467

Product Details

PDL 56 Series Switch Isolation 20A 3 Pole 500V IP66 Orange

All of the 56 Series extensive range of 415V Switches are fully motor rated to AC23A and AC3, making them suitable for switching the harshest loads likely to be found in industry.
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Nominal voltage
500
Mounting method
Surface mounted
Assembly arrangement
Switch Less enclosure
Method of operation
Rotary
Colour
Orange
Connection type
Screw Terminal
Rated current
20
Material quality
PBT (Polybutylene Terephthalate)
Material
Plastic
Type of fastening
Screw mounting
RAL-number (similar)
2017
Push button switch
no
Surface finishing
Gloss
Suitable for degree of protection (IP)
IP66
Device width
95
Device height
95
Device depth
69
Label space/information surface
without labelling field
Number of modules (module system)
1
Nominal voltage (unit)
V
Rated current (unit)
A
Device width (unit)
mm
Device height (unit)
mm
Device depth (unit)
mm
