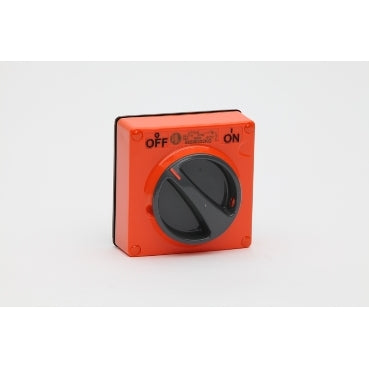

Switch Motor Rated 32A 3P 500V IP66 Orange
PDL by Schneider Electric

Switch Motor Rated 32A 3P 500V IP66 Orange

Ideal part number PDL56SW332KGOR Manufacturer number PDL56SW332KGLERO Barcode 9416175065972
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

PDL 56 Series Industrial Switch KG Series Motor Rated 32A 3 Pole 500V IP66 Orange

This IP-rated switch is part of the PDL 56 Series industrial switchgear range. It is IP66 rated for protection against dust and water, it can operate in extreme temperatures from -40°C to +55°C. This product is specifically designed & engineered for greater UV resistance. Since the beginning of the 1980s the PDL 56 Series has earned a reputation for top performance in industrial environments, specifically designed to withstand specific and often harsh environments. This product comes in Chemical-Resistant Orange (RO) colour. Resistance to acid-based detergents and chemicals, petroleum based products and oils grease in automotive workshops. Ideal for High-visibility in water treatment plants, citrus fruit processing and wineries.

Technical specifications

Nominal voltage
500 V
Mounting method
Surface mounted
Assembly arrangement
Switch Less enclosure
Method of operation
Rotary
Colour
Orange
Connection type
Screw Terminal
Rated current
32 A
Material quality
PBT (Polybutylene Terephthalate)
Material
Plastic
Type of fastening
Screw mounting
RAL-number
2017 (Similar: 2017)
Push button switch
no
Surface finishing
Gloss
Suitable for degree of protection
IP66 (Ip: IP66)
Device width
95 mm
Device height
95 mm
Device depth
68 mm
Label space/information surface
without labelling field
Number of modules
1 (Module system: 1)
