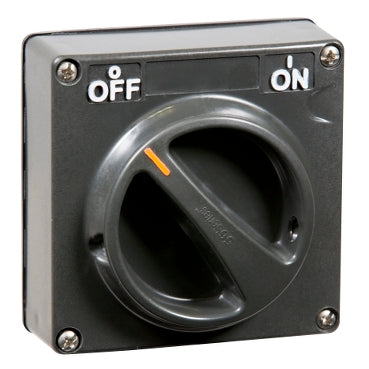

Switch Motor Rated 20A 4P 500V IP66 Chemical Grey
PDL by Schneider Electric

Switch Motor Rated 20A 4P 500V IP66 Chemical Grey

Ideal part number PDL56SW420KGCG Manufacturer number PDL56SW420KGLECG Barcode 9416175247163
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

PDL 56 Series Industrial Switch KG Series Motor Rated 20A 4 Pole 500V IP66 Chemical Grey

This IP-rated switch is part of the PDL 56 Series industrial switchgear range. It is IP66 rated for protection against dust and water, it can operate in extreme temperatures from -40°C to +55°C. This product is specifically designed & engineered for greater UV resistance. Since the beginning of the 1980s the PDL 56 Series has earned a reputation for top performance in industrial environments, specifically designed to withstand specific and often harsh environments. This product comes in Chemical-Resistant Grey (CG) colour. Resistance to alkali-based chemicals, foaming caustic and cooking oils. Ideal for Food processing environments and high temperature & pressure wash-down areas such as abattoirs, dairies, chicken processing plants.

Technical specifications

Nominal voltage
500 V
Mounting method
Surface mounted
Assembly arrangement
Switch Less enclosure
Method of operation
Rotary
Colour
Chemical Grey
Connection type
Screw Terminal
Rated current
20 A
Material quality
Polycarbonate (PC)
Material
Plastic
Type of fastening
Screw mounting
Push button switch
no
Surface finishing
Gloss
Suitable for degree of protection
IP66 (Ip: IP66)
Device width
95 mm
Device height
95 mm
Device depth
86 mm
Label space/information surface
without labelling field
Number of modules
1 (Module system: 1)
