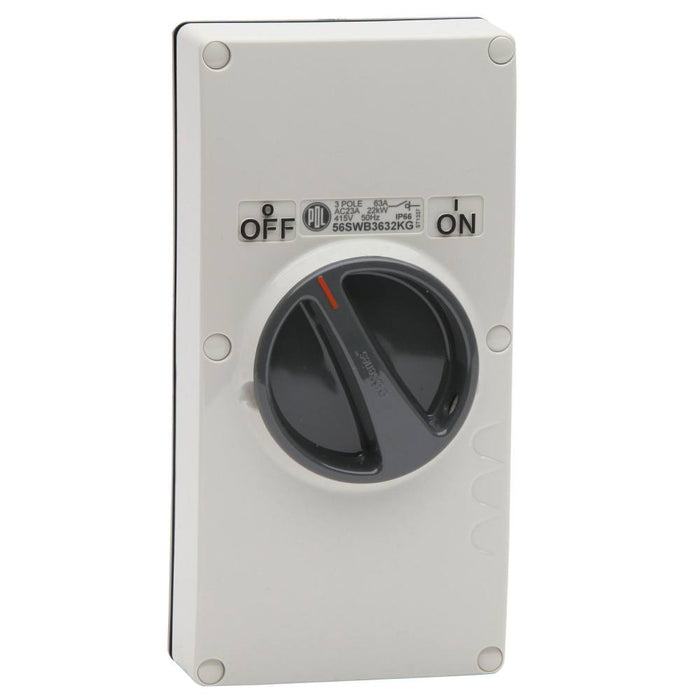

Switch 2Gang Motor Rated 63A 3P IP66 Base Mount Grey
PDL by Schneider Electric

Switch 2Gang Motor Rated 63A 3P IP66 Base Mount Grey

Ideal part number PDL56SWB3632KGG Manufacturer number PDL56SWB3632KGLEGY Barcode 9416175239281
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

PDL 56 Series Industrial Switch KG Series Motor Rated 2 Gang 63A 3 Pole IP66 Base Mount Grey

This motor-rated switch base mount is part of the PDL 56 Series industrial switchgear range. It is IP66 rated for protection against dust and water, it can operate in extreme temperatures from -40°C to +55°C. This product is specifically designed & engineered for greater UV resistance. Since the beginning of the 1980s the PDL 56 Series has earned a reputation for top performance in industrial environments, specifically designed to withstand specific and often harsh environments. This product comes in Light Grey (GY) colour. Suitable for general industrial use and neutral chemicals. Ideal for Dusty or damp environments, plant rooms, warehouses, assembly plants, aquatic centres and areas subjected to low and high temperatures

Technical specifications

Nominal voltage
250 V
Mounting method
Surface mounted
Assembly arrangement
Switch Less enclosure
Method of operation
Rotary
Colour
Grey
Connection type
Screw Terminal
Rated current
63 A
Material quality
Polycarbonate (PC)
Material
Plastic
Type of fastening
Screw mounting
RAL-number
7035 (Similar: 7035)
Push button switch
no
Surface finishing
Gloss
Suitable for degree of protection
IP66 (Ip: IP66)
Device width
95 mm
Device height
190 mm
Device depth
66 mm
Label space/information surface
without labelling field
Number of modules
2 (Module system: 2)
