Sw Mech 20A 2Way PRESS White

Sw Mech 20A 2Way PRESS White

by PDL by Schneider Electric
Ideal Part Number PDL681M20PWH Manufacturer Number PDL681M20PWH Barcode 9416175194733

Product Details

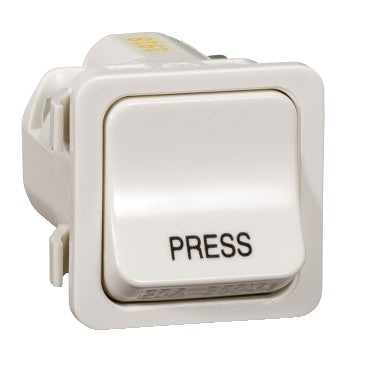

PDL Switch Module 20A/16AX 2 Way marked PRESS White

Switch mechanism. Single-pole switch. Switch is marked PRESS. 600 Series mechanism. PDL 600. Colour: White Rated current: 20A / 16AX. Operating voltage 250V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Nominal voltage
250
Mounting method
Flush mounted
Assembly arrangement
Basic Element
Method of operation
Push-button
Colour
White
Connection type
Screw terminal
Illumination
No
Rated current
20
Material quality
Polycarbonate (PC)
Material
Plastic
Type of fastening
Screw mounting
RAL-number (similar)
9010
Switching current for fluorescent lamps
16
Push button switch
yes
Surface finishing
Gloss
Suitable for degree of protection (IP)
IP20
Device width
23
Device height
23
Device depth
26
Number of modules (module system)
1
Nominal voltage (unit)
V
Rated current (unit)
A
Switching current for fluorescent lamps (unit)
AX
Device width (unit)
mm
Device height (unit)
mm
Device depth (unit)
mm
