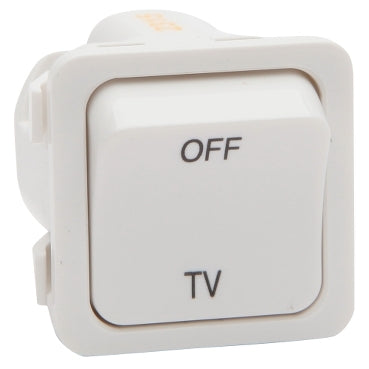

Sw Mech 20A 2Way TV White

Sw Mech 20A 2Way TV White

by PDL by Schneider Electric
Ideal Part Number PDL681M20TVWH Manufacturer Number PDL681M20TVWH Barcode 9416175195280

Product Details

PDL Switch Module 20a/16AX 2 Way marked TV White
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Nominal voltage
250 V
Mounting method
Module Frame
Assembly arrangement
Basic element with complete housing
Method of operation
Rocker
Colour
White
Connection type
Screwed terminal
Illumination
No
Rated current
20 A
Material quality
PC (Polycarbonate)
Material
Plastic
Type of fastening
Screw mounting
RAL-number
9010 (Similar: 9010)
Switching current for fluorescent lamps
16 AX
Surface finishing
Gloss
Device width
23 mm
Device height
23 mm
Device depth
26 mm
