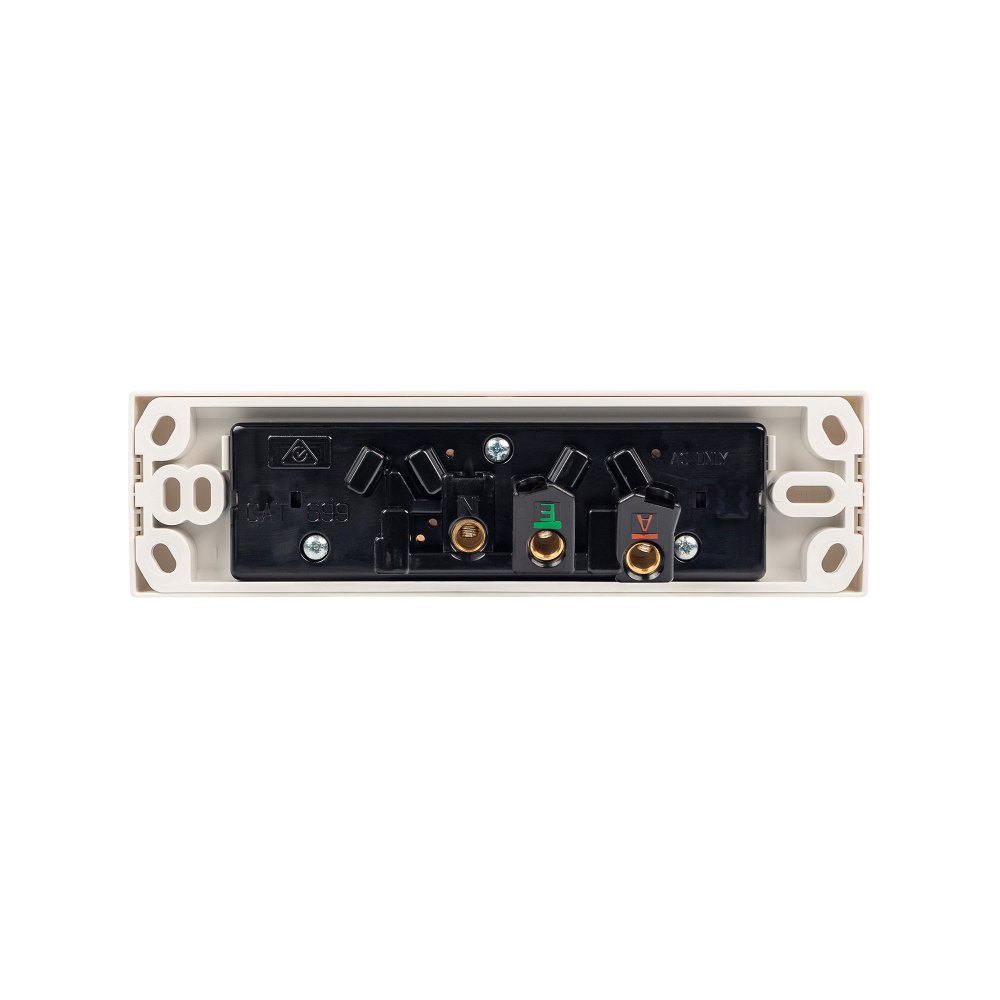

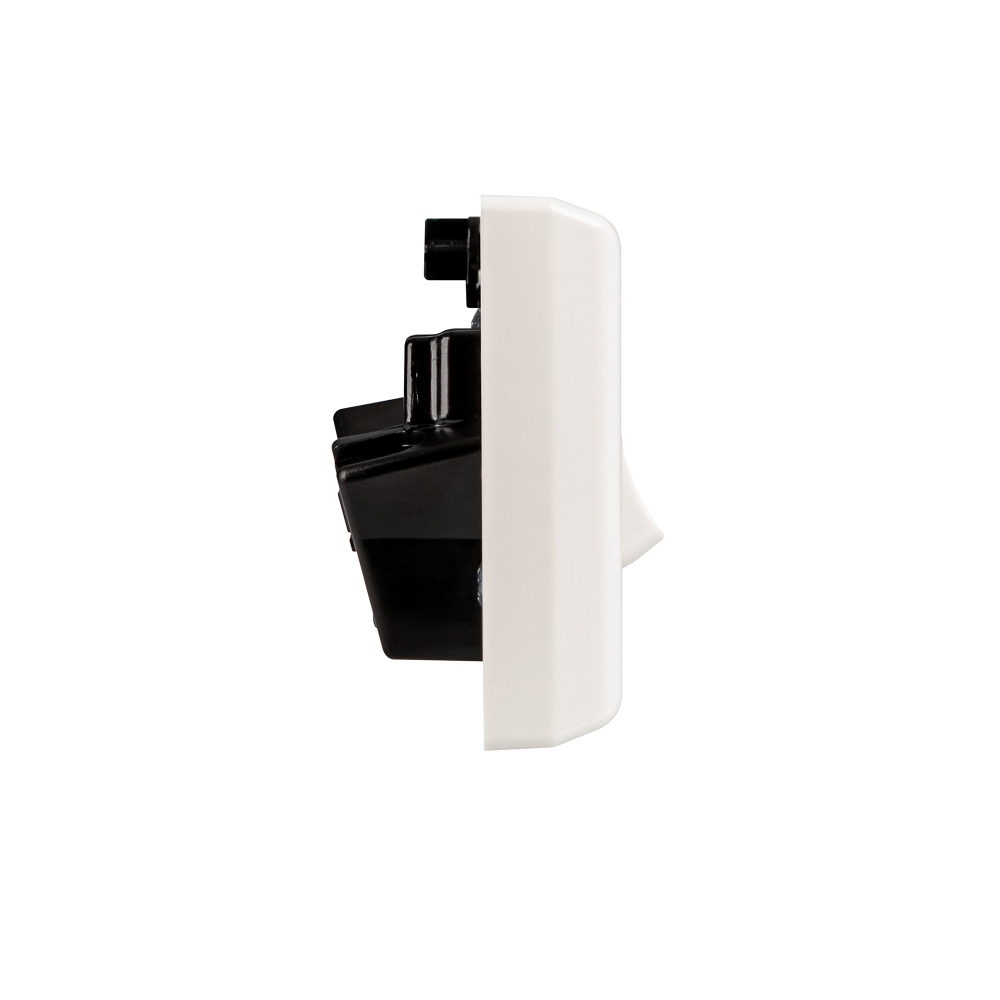

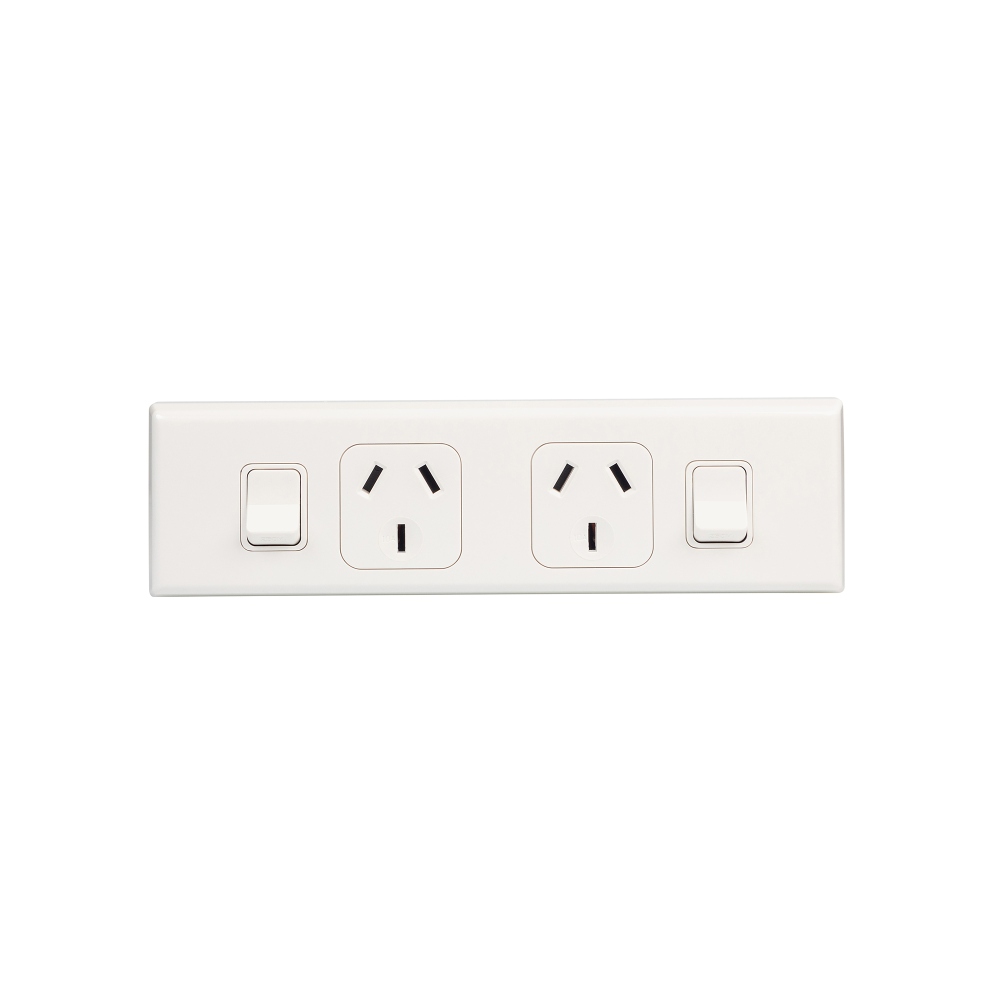

Worktop Switched Socket 10A Double White
PDL by Schneider Electric

Worktop Switched Socket 10A Double White

Ideal part number PDL699 Manufacturer number PDL699WH Barcode 9416175124136
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

PDL 600 Series worktop double horizontal Switched Socket 10A white

Socket outlet assembly for worktops. Single base socket outlet. 600 Series cover and socket grid are included. PDL 600. Colour: White Rated current: 10A. Operating voltage 240V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.

Technical specifications

Nominal voltage
240 V
Mounting method
Surface mounted (plaster)
Method of operation
Rocker
Colour
White
Number of socket outlets
2
Material quality
PC (Polycarbonate)
Material
Plastic
Type of fastening
Mounting with screw
Type of switch
On/Off
Mounting direction
Horizontal
Nominal current socket outlet
10 A
RAL-number
9010 (Similar: 9010)
Transparent
no
Surface finishing
Gloss
Device width
167 mm
Device height
45 mm
