Distribution Board Surface 30Way
PDL by Schneider Electric

Distribution Board Surface 30Way

Ideal part number PDLDBS30 Manufacturer number PDLDBS30 Barcode 9416175117947
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

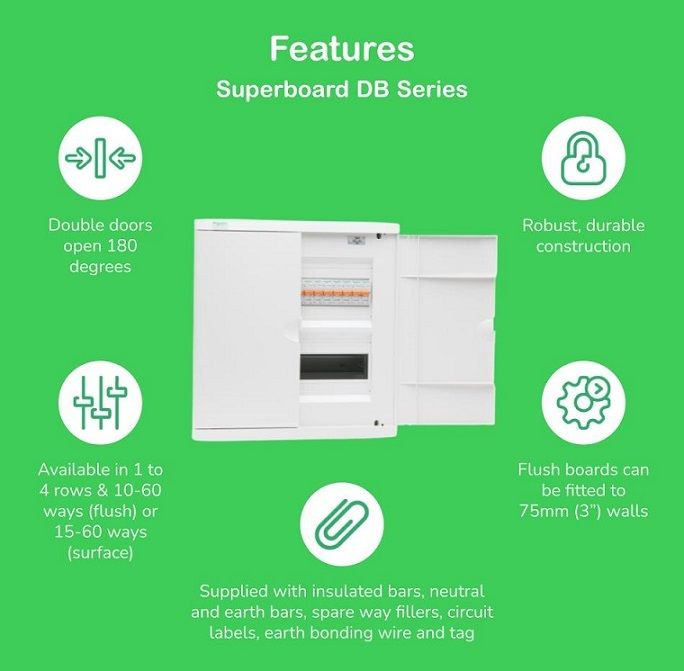

DBS Series 30-Way Distribution Super Board; 100A, Surface Mount, ABS Plastic, White

This Superboards Series product is a surface mounted distribution bard, up to 100A. It is made of plastic. Its colour is light grey with a glossy surface finish. The Ue rated operational voltage is 415V. The dimensions are (W) 376mm x (H) 392mm x (D) 115mm. It is dedicated to manage 30 ways.

Technical specifications

Mounting method
Surface mounted
Colour
White
Width
376 mm
Height
392 mm
Depth
115 mm
RAL-number
9010
Number of rows
2
DIN-rail
yes
Housing material
ABS (acrylonitrile butadience-styrene)
Degree of protection
IP40 (Ip: IP40)
Transparent cover/door
no
