Pro Series PCU Single Switched 20A 16AX White
PDL by Schneider Electric

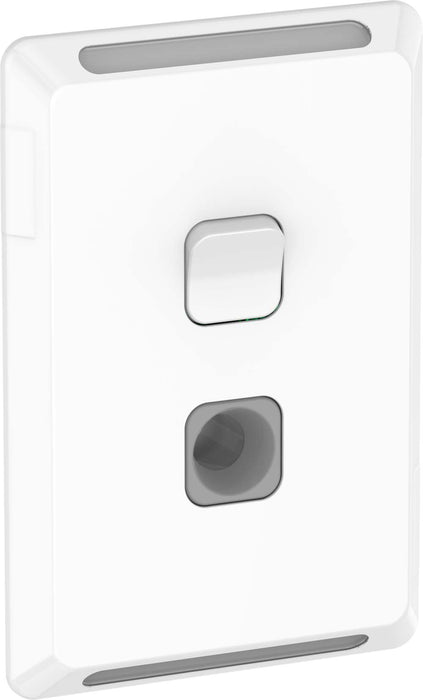

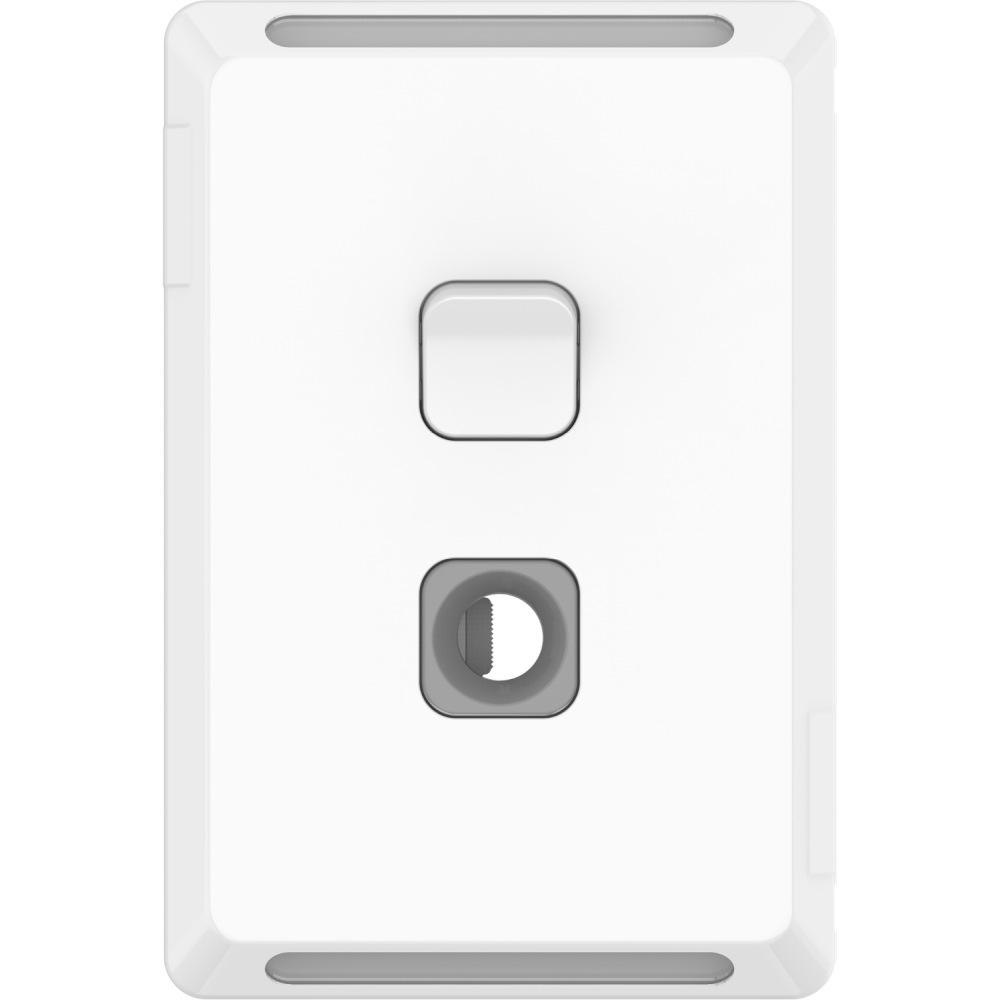

Pro Series PCU Single Switched 20A 16AX White

Ideal part number PDLP351 Manufacturer number PDLP351-XW Barcode 9416175263903
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

PDL Pro Series PCU Single Switched 20 Amp 16AX White

This switch comes in colour white and is part of the PDL Pro Series commercial switchgear range. Pro Series skin, grid and switch mechanism are included. Screw covers help prevent direct access to the screws after installation. A locking bar on the switch plate helps to reduce the risk of module pushbacks and makes it easier to change and upgrade. Pro Series has an attractive 9mm thin design and all cover plates have a circuit identification window. The Pro Series range is fully compatible with all 300 Series modules. Operating voltage 250V a. c. 50HzNote Requires installation by an appropriately licenced electrician.

Technical specifications

Nominal voltage
240 V
Mounting method
Flush mounted
Assembly arrangement
Basic element with full cover plate
Method of operation
Rocker
Colour
White
Connection type
Screw terminal
Rated current
20 A
Type of fastening
Screw mounting
Number of rockers
1
Switching current for fluorescent lamps
16 AX
Suitable for degree of protection
IP20 (Ip: IP20)
Label space/information surface
without labelling field
