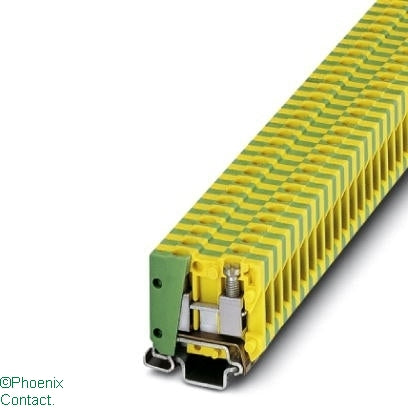

MBK 2.5E-PE Earth Terminal 2.5mm NS15
Phoenix

MBK 2.5E-PE Earth Terminal 2.5mm NS15

Ideal part number PHX1402788 Manufacturer number 1402788 Barcode 4017918020897
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Mini ground terminal block, number of connections: 2, connection method: Screw connection, 1 level, cross section: 0.2 mm² - 2.5 mm², mounting type: NS 15, colour: green-yellow

Technical specifications

Mounting method
DIN rail 15 mm
Colour
Other
Operating temperature
105,-60 °C
Inflammability class of insulation material according to with UL94
V0
Closing plate required
no
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
PEN function possible
no
Number of levels
1
Number of clamp positions per level
2
Connectable conductor cross section solid-core
0.2,2 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.25,1 mm²
Connectable conductor cross section fine-strand without cable end sleeve
0.2,2 mm²
Connectable conductor cross section multi-wired
0.2,2 mm²
Material insulation body
Other
Country of Origin
Poland
