MBK 5/E Terminal 2.5mm NS15
Phoenix

MBK 5/E Terminal 2.5mm NS15

Ideal part number PHX1415076 Manufacturer number 1415076 Barcode 4017918021368
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

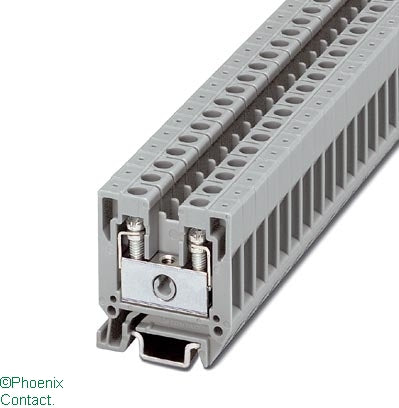

Mini feed-through terminal block, nom. voltage: 500 V, nominal current: 32 A, connection method: Screw connection, 1 level, cross section: 0.2 mm² - 4 mm², mounting type: NS 15, colour: gray

Technical specifications

Mounting method
DIN rail 15 mm
Colour
Grey
Rated voltage
500 V
Operating temperature
105,-60 °C
Inflammability class of insulation material according to with UL94
V0
Closing plate required
yes
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Number of levels
1
Number of clamp positions per level
2
Internally connected stages
no
Connectable conductor cross section solid-core
0.2,4 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.25,2 mm²
Connectable conductor cross section fine-strand without cable end sleeve
0.2,4 mm²
Connectable conductor cross section multi-wired
0.2,1 mm²
Material insulation body
Other
Rated current In
32 A
Country of Origin
Poland
