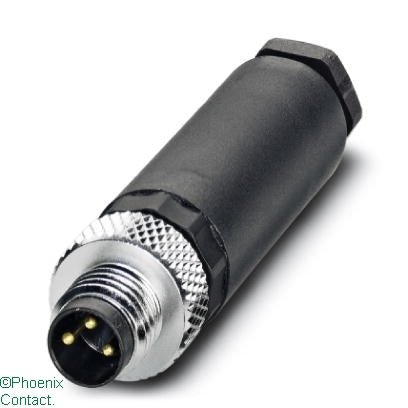

SACC-M8MS-3CON-M-SW Plug Male 3Pin M8 Straight

SACC-M8MS-3CON-M-SW Plug Male 3Pin M8 Straight

by Phoenix
Ideal Part Number PHX1501252 Manufacturer Number 1501252 Barcode 4017918612795

Product Details

Connector, Universal, 3-position, Plug straight M8, A-coded, Screw connection, knurl material: Nickel-plated brass, external cable diameter 3.5 mm ... 5 mm
Request a quote for this product

Enter details to request a quote

Technical Specifications

Type of locking
Other
Rated voltage
48 V
Screened
no
Contact type
Pin
Housing material
Other
Coating housing
Other
With status indication
no
Ambient temperature
85,85 °C
Inflammability class of insulation material according to with UL94
HB
Type of electric connection
Screw connection
Material of contact surface
Gold
Over voltage category
III
Pollution degree
3
Type of housing
Straight
Connectable conductor cross section solid-core
0 mm²
With protective conductor
no
Rated current In
4 A
For cable outer diameter
3.5,5 mm
Min. number of insertion cycles
100
Number of power contacts
0
Number of control contacts
3
Number of data contacts
0
Material thread ring
Other
Country of Origin
Germany
