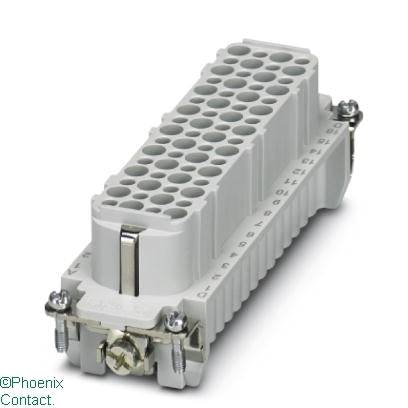

HC-D 64-I-CT-F Female Insert D64 64way Crimp Connection

HC-D 64-I-CT-F Female Insert D64 64way Crimp Connection

by Phoenix

Product Details

Contact insert, number of positions: 64+PE, size: B24, number of connections per position: 1, Socket, Crimp connection, 250 V, 10 A, 0.14 mm² ... 2.5 mm², application: Signal
Request a quote for this product

Enter details to request a quote

Technical Specifications

Width
34 mm
Height
34 mm
Depth
110 mm
Rated voltage
250 V
With wire protection
no
Number of poles
64
Contact type
Bus
Ambient temperature
125,125 °C
Operating temperature
-40,125 °C
Inflammability class of insulation material according to with UL94
V0
Rated surge voltage
4 kV
Type of electric connection
Crimp connection
Material of contact surface
Other
Over voltage category
III
Pollution degree
3
Diameter plug-in contact
1 mm
Contact insert without contacts
yes
Connectable conductor cross section fine-strand without cable end sleeve
0.14,2 mm²
Connectable conductor cross section multi-wired
0.14,2 mm²
With protective conductor
yes
Material contact
Other copper alloys
Material connector insert
Thermoplastic
Rated current In
10 A
Min. number of insertion cycles
500
Number of power contacts
64
Country of Origin
China
