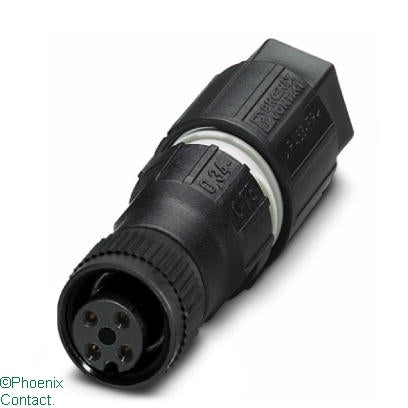

SACC-M12FS-4QO-0.75 Connector Female 4 Pin M12 Quickon-O

SACC-M12FS-4QO-0.75 Connector Female 4 Pin M12 Quickon-O

by Phoenix
Ideal Part Number PHX1641756 Manufacturer Number 1641756 Barcode 4017918921873

Product Details

Connector, Universal, 4-position, Socket straight M12, A-coded, Insulation displacement connection, knurl material: Plastic, external cable diameter 4 mm ... 8 mm
Request a quote for this product

Enter details to request a quote

Technical Specifications

Type of locking
Other
Rated voltage
250
Screened
no
Contact type
Bus
Housing material
Other
Coating housing
Other
With status indication
no
Ambient temperature
80,80
Inflammability class of insulation material according to with UL94
V0
Type of electric connection
Insulation displacement connection
Material of contact surface
Nickel
Over voltage category
III
Pollution degree
3
Type of housing
Straight
Connectable conductor cross section solid-core
0
With protective conductor
no
Rated current In
4
For cable outer diameter
4,8
Min. number of insertion cycles
100
Number of power contacts
0
Number of control contacts
4
Number of data contacts
0
Material thread ring
Plastic
Country of Origin
Germany
Rated voltage (unit)
V
Ambient temperature (unit)
°C
Connectable conductor cross section solid-core (unit)
mm²
Rated current In (unit)
A
For cable outer diameter (unit)
mm
