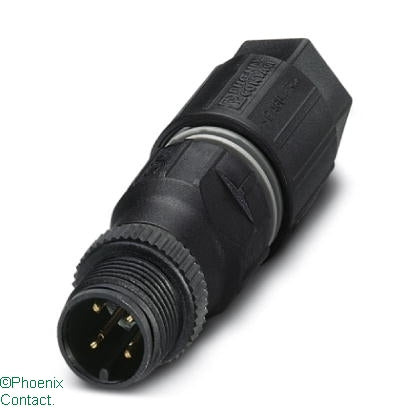

SACC-M12MS-4QO-0.75 Plug Male 4Pin M12 Quickon-One

SACC-M12MS-4QO-0.75 Plug Male 4Pin M12 Quickon-One

by Phoenix
Ideal Part Number PHX1641769 Manufacturer Number 1641769 Barcode 4017918921880

Product Details

Connector, Universal, 4-position, Plug straight M12, A-coded, Insulation displacement connection, knurl material: Plastic, external cable diameter 4 mm ... 8 mm
Request a quote for this product

Enter details to request a quote

Technical Specifications

Type of locking
Other
Rated voltage
250 V
Screened
no
Contact type
Pin
Housing material
Other
Coating housing
Other
With status indication
no
Ambient temperature
80,80 °C
Inflammability class of insulation material according to with UL94
V0
Type of electric connection
Insulation displacement connection
Material of contact surface
Nickel
Over voltage category
III
Pollution degree
3
Type of housing
Straight
Connectable conductor cross section solid-core
0 mm²
With protective conductor
no
Rated current In
4 A
For cable outer diameter
4,8 mm
Min. number of insertion cycles
100
Number of power contacts
0
Number of control contacts
4
Number of data contacts
0
Material thread ring
Plastic
Country of Origin
Germany
