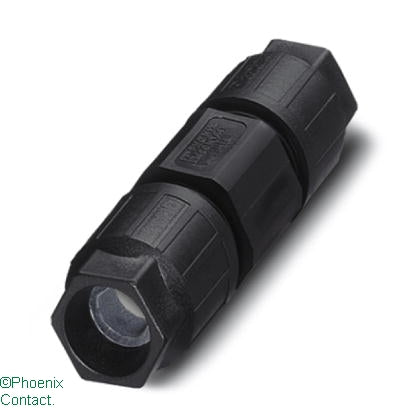

Q 1.5/4IDC/24-24KU-KU Bk Connector 4P Quickon Inline
Phoenix

Q 1.5/4IDC/24-24KU-KU Bk Connector 4P Quickon Inline

Ideal part number PHX1642153 Manufacturer number 1642153 Barcode 4017918920418
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

QUICKON cable connector, black, 4-position. without PE, 0.75 mm2 ... 1.5 mm2. 500 V/15 A, for a cable diameter of 6 mm ... 12 mm.

Easy and safe - with the cable connector, you can repair or extend cables quickly, in combination with the connector as well as the coupling connection


Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105


Robust throughout: housing with IP65/IP67 protection for a wide range of applications


Technical specifications

Width
24 mm
Height
24 mm
Connection type
QUICKON fast connection
Type of locking
without
Rated current
15 A
Rated voltage
500 V
Number of poles
4
Length
86 mm
Housing material
PA Polymide
Surface treatment contacts
Tin-Plated
Pollution degree
3
Rated surge voltage
6 kV
Contact material
CuZn
Degree of protection
IP65 (Ip: IP65)
Number of connections per pole
1
Pole codification
1, 2, 3, 4
Colour coding/contact insert
No
Connection cross section
1.5 mm² (Fine-strand: 1.5, Solid-core: 1)
