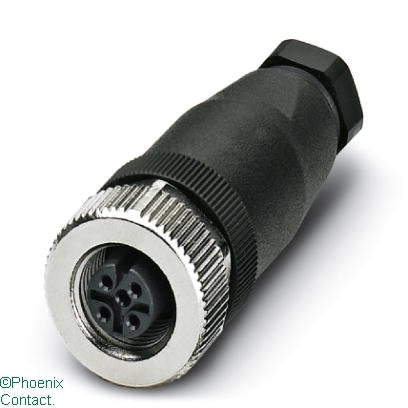

SACC-M12FS-4CON-PG7-M Connector Female 4Pin M12 PG7 Straight

SACC-M12FS-4CON-PG7-M Connector Female 4Pin M12 PG7 Straight

by Phoenix
Ideal Part Number PHX1681127 Manufacturer Number 1681127 Barcode 4017918157456

Product Details

SACC-M12FS-4CON-PG7-M Connector Female 4Pin M12 PG7 Straight

Connector, Universal, 4-position, Socket straight M12, A-coded, Screw connection, knurl material: Zinc die-cast, nickel-plated, cable gland Pg7, external cable diameter 4 mm ... 6 mm
Request a quote for this product

Enter details to request a quote

Technical Specifications

Type of locking
Other
Rated voltage
250
Screened
no
Contact type
Bus
Housing material
Other
Coating housing
Other
With status indication
no
Ambient temperature
85,85
Inflammability class of insulation material according to with UL94
HB
Type of electric connection
Screw connection
Material of contact surface
Other
Over voltage category
II
Pollution degree
3
Type of housing
Straight
Connectable conductor cross section solid-core
0
With protective conductor
no
Rated current In
4
For cable outer diameter
4,6
Min. number of insertion cycles
50
Number of power contacts
0
Number of control contacts
4
Number of data contacts
0
Material thread ring
Other
Country of Origin
Germany
Rated voltage (unit)
V
Ambient temperature (unit)
°C
Connectable conductor cross section solid-core (unit)
mm²
Rated current In (unit)
A
For cable outer diameter (unit)
mm
