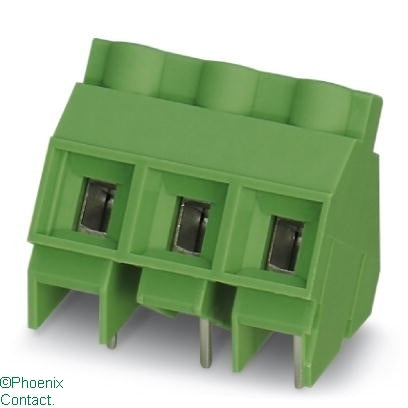

Combicon SMKDS 5/3-9.5 3Way Terminal Block
Phoenix

Combicon SMKDS 5/3-9.5 3Way Terminal Block

Ideal part number PHX1720020 Manufacturer number 1720020 Barcode 4017918024987
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

PCB terminal block, nominal current: 32 A, rated voltage (III/2): 1000 V, nominal cross section: 4 mm², number of potentials: 3, number of rows: 1, number of positions per row: 3, product range: SMKDS 5, pitch: 9.52 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, mounting: Wave soldering, conductor/PCB connection direction: 35 °, colour: green, Pin layout: Linear pinning, Solder pin [P]: 5 mm, number of solder pins per potential: 1, type of packaging: packed in cardboard. The article can be aligned to create different nos. of positions!

Technical specifications

Height
26.5 mm
Housing colour
Green
Operating temperature
-40,100 °C
Inflammability class of insulation material according to with UL94
V2
Connection type conductor
Screw connection
Connectable conductor cross section solid-core
0.2,6 mm²
Connectable conductor cross section fine-strand without cable end sleeve
0.2,4 mm²
Connectable conductor cross section multi-wired
0.2,1 mm²
Material insulation body
Other
Country of Origin
Poland
