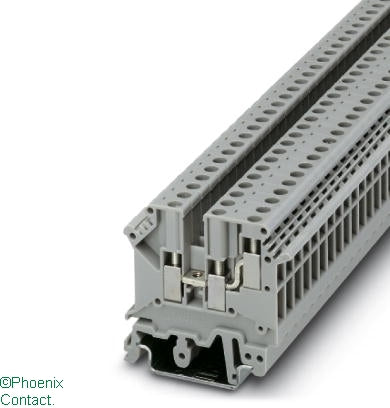

UK 5-Twin Terminal 4mm 3Conductor Grey

UK 5-Twin Terminal 4mm 3Conductor Grey

by Phoenix
Ideal Part Number PHX1923021 Manufacturer Number 1923021 Barcode 4017918052423

Product Details

1-level terminal block with double connection on one side, cross section: 0.2 - 4 mm², AWG: 24 - 12, width: 6.2 mm, colour: gray
Request a quote for this product

Enter details to request a quote

Technical Specifications

Mounting method
DIN rail 35 mm
Colour
Grey
Rated voltage
500
Operating temperature
105,-60
Inflammability class of insulation material according to with UL94
V2
Closing plate required
yes
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Number of levels
2
Number of clamp positions per level
3
Internally connected stages
no
Connectable conductor cross section solid-core
0.2,4
Connectable conductor cross section fine-strand with cable end sleeve
0.25,2
Connectable conductor cross section fine-strand without cable end sleeve
0.2,4
Connectable conductor cross section multi-wired
0.2,1
Material insulation body
Other
Rated current In
32
Country of Origin
China
Rated voltage (unit)
V
Operating temperature (unit)
°C
Connectable conductor cross section solid-core (unit)
mm²
Connectable conductor cross section fine-strand with cable end sleeve (unit)
mm²
Connectable conductor cross section fine-strand without cable end sleeve (unit)
mm²
Connectable conductor cross section multi-wired (unit)
mm²
Rated current In (unit)
A
