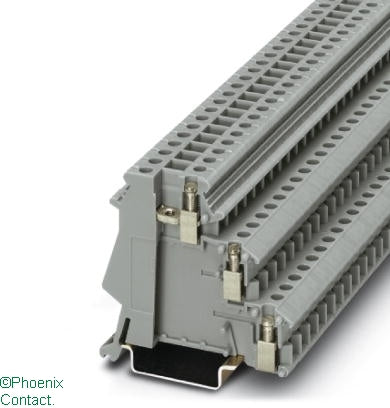

DIK 1.5 Sensor Terminal 3Level 1.5mm Grey

DIK 1.5 Sensor Terminal 3Level 1.5mm Grey

by Phoenix

Product Details

Sensor/actuator terminal block, nom. voltage: 250 V, nominal current: 24 A, connection method: Screw connection, 1st, 2nd and 3rd level, Rated cross section: 2.5 mm², cross section: 0.2 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, colour: gray
Request a quote for this product

Enter details to request a quote

Technical Specifications

Mounting method
Other
Colour
Grey
Rated voltage
250 V
Operating temperature
105,-60 °C
Inflammability class of insulation material according to with UL94
V2
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
With PE connection
no
With shield connection
no
Number of levels
3
Number of clamp positions per level
1
Internally connected stages
no
Cross connectable
yes
Disconnect function
no
Connectable conductor cross section solid-core
0.2,4 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.25,2 mm²
Connectable conductor cross section fine-strand without cable end sleeve
0.2,2 mm²
Connectable conductor cross section multi-wired
0.2,1 mm²
Material insulation body
Other
Country of Origin
Poland
