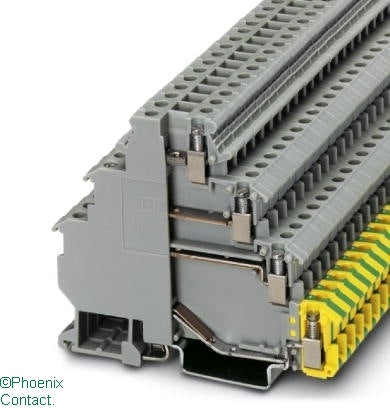

VIOK 1.5-3D/PE Terminal 1.5mm 3Level and Earth

VIOK 1.5-3D/PE Terminal 1.5mm 3Level and Earth

by Phoenix

Product Details

Motor terminal block, four-level, cross section: 0.2 mm² - 4 mm², AWG: 24 - 12, connection method: screw connection, width: 6.2 mm, colour: gray, mounting type: NS 35/7,5, NS 35/15
Request a quote for this product

Enter details to request a quote

Technical Specifications

Mounting method
Other
Colour
Grey
Rated voltage
400 V
Operating temperature
105,-60 °C
Inflammability class of insulation material according to with UL94
V2
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
With PE connection
yes
With shield connection
no
Number of levels
4
Number of clamp positions per level
2
Internally connected stages
no
Cross connectable
yes
Disconnect function
no
Connectable conductor cross section solid-core
0.2,4 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.25,2 mm²
Connectable conductor cross section fine-strand without cable end sleeve
0.2,2 mm²
Material insulation body
Other
Country of Origin
Poland
