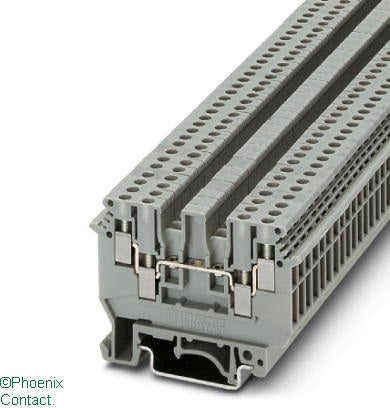

UDK 3 Terminal 2.5mm 1Level Dbl Con Both Sides Grey
Phoenix

UDK 3 Terminal 2.5mm 1Level Dbl Con Both Sides Grey

Ideal part number PHX2775375 Manufacturer number 2775375 Barcode 4017918068578
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Feed-through terminal block, nom. voltage: 500 V, nominal current: 24 A, connection method: Screw connection, 1 level, Rated cross section: 2.5 mm², cross section: 0.2 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, NS 32, colour: gray

Technical specifications

Mounting method
DIN rail 35 mm
Colour
Grey
Rated voltage
500 V
Operating temperature
105,-60 °C
Inflammability class of insulation material according to with UL94
V2
Closing plate required
yes
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Number of levels
2
Number of clamp positions per level
4
Internally connected stages
no
Connectable conductor cross section solid-core
0.2,4 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.25,1 mm²
Connectable conductor cross section fine-strand without cable end sleeve
0.2,2 mm²
Connectable conductor cross section multi-wired
0.2,1 mm²
Material insulation body
Other
Rated current In
24 A
Country of Origin
China
