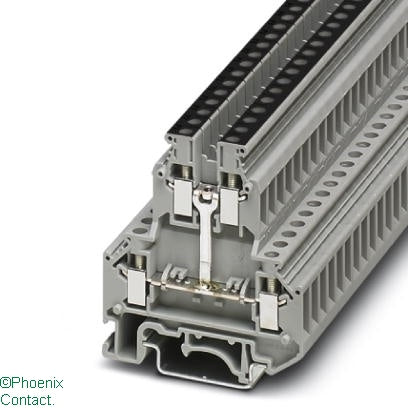

UKK 5-PV Terminal 4mm 2Level with Equipotential Bond Grey

UKK 5-PV Terminal 4mm 2Level with Equipotential Bond Grey

by Phoenix
Ideal Part Number PHX2791388 Manufacturer Number 2791388 Barcode 4017918242787

Product Details

Double-level terminal block, with equipotential bonder, nom. voltage: 500 V, nominal current: 32 A, connection method: Screw connection, Rated cross section: 4 mm², cross section: 0.2 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, NS 32, colour: gray
Request a quote for this product

Enter details to request a quote

Technical Specifications

Mounting method
DIN rail 35 mm
Rated voltage
500 V
Operating temperature
105,-60 °C
Inflammability class of insulation material according to with UL94
V0
Closing plate required
yes
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Connectable conductor cross section solid-core
0.2,4 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.25,2 mm²
Connectable conductor cross section fine-strand without cable end sleeve
0.2,4 mm²
Connectable conductor cross section multi-wired
0.2,1 mm²
Material insulation body
Other
Rated current In
32 A
Country of Origin
China
