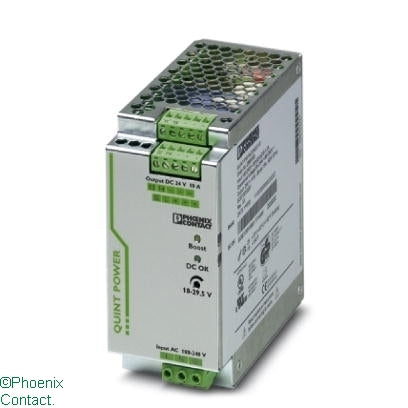

Quint-PS/1AC/24DC/10 Power Supply 1Ph 24VDC 10A

Quint-PS/1AC/24DC/10 Power Supply 1Ph 24VDC 10A

by Phoenix

Product Details

Primary-switched power supply unit QUINT POWER, Screw connection, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 1-phase, output: 24 V DC / 10 A
Request a quote for this product

Enter details to request a quote

Technical Specifications

Width
60 mm
Height
130 mm
Depth
125 mm
Built-in height
130 mm
Power consumption
302 VA
Modular version
no
Suitable for safety functions
yes
Voltage type
AC/DC (Supply voltage: AC/DC)
Power output
240 W
Output voltage stabilized
yes
Type of electric connection
Screw connection
Rail mounting possible
yes
Wall mounting possible
no
Stabilized
yes
Degree of protection
IP20 (Ip: IP20)
Direct mounting possible
no
1st secondary output voltage
24,29.5 V
Secondary voltage adjustable
yes
Rated supply voltage AC 50 Hz
100,240 V
Rated supply voltage AC 60 Hz
100,264 V
Rated supply voltage DC
110,350 V
Short-circuit-proof
yes
Max. output current 1
15 A
Nominal value output voltage 1
24 V
Nominal value output current 1
10 A
SIL according to IEC 61508
None
Country of Origin
Thailand
