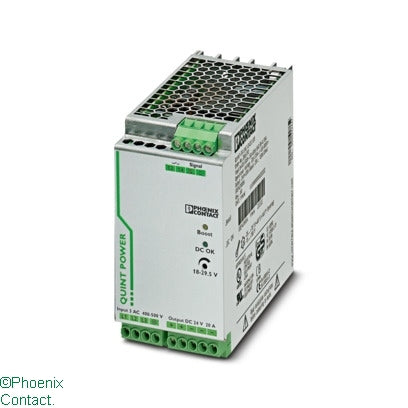

Quint-PS/3AC/24DC/20 Power Supply 3Ph 24VDC 20A
Phoenix

Quint-PS/3AC/24DC/20 Power Supply 3Ph 24VDC 20A

Ideal part number PHX2866792 Manufacturer number 2866792 Barcode 4046356152907
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Primary-switched power supply unit QUINT POWER, Screw connection, SFB Technology (Selective Fuse Breaking), input: 3-phase, output: 24 V DC / 20 A

Technical specifications

Width
69 mm
Height
130 mm
Depth
122 mm
Built-in height
130 mm
Power consumption
783 VA
Modular version
no
Suitable for safety functions
yes
Voltage type
AC/DC (Supply voltage: AC/DC)
Power output
480 W
Output voltage stabilized
yes
Type of electric connection
Screw connection
Rail mounting possible
yes
Wall mounting possible
no
Stabilized
yes
Degree of protection
IP20 (Ip: IP20)
Direct mounting possible
no
1st secondary output voltage
24,29.5 V
Secondary voltage adjustable
yes
Rated supply voltage AC 50 Hz
400,500 V
Rated supply voltage AC 60 Hz
400,575 V
Rated supply voltage DC
450,800 V
Short-circuit-proof
yes
Max. output current 1
26 A
Nominal value output voltage 1
24 V
Nominal value output current 1
20 A
Country of Origin
Thailand
