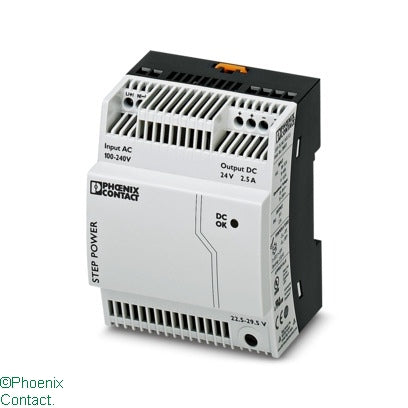

Step-PS/1AC/24DC/2.5 Power Supply 1Ph 24VDC 2.5A

Step-PS/1AC/24DC/2.5 Power Supply 1Ph 24VDC 2.5A

by Phoenix
Ideal Part Number PHX2868651 Manufacturer Number 2868651 Barcode 4046356163224

Product Details

Primary-switched STEP POWER power supply for DIN rail mounting, input: 1-phase, output: 24 V DC/2.5 A
Request a quote for this product

Enter details to request a quote

Technical Specifications

Width
72 mm
Height
90 mm
Depth
61 mm
Built-in height
90 mm
Power consumption
124 VA
Modular version
yes
Suitable for safety functions
yes
Width in number of modular spacings
4
Voltage type
AC/DC (Supply voltage: AC/DC)
Power output
60 W
Output voltage stabilized
yes
Type of electric connection
Screw connection
Rail mounting possible
yes
Wall mounting possible
yes
Stabilized
yes
Degree of protection
IP20 (Ip: IP20)
Direct mounting possible
yes
1st secondary output voltage
24,29.5 V
Secondary voltage adjustable
yes
Rated supply voltage AC 50 Hz
85,240 V
Rated supply voltage AC 60 Hz
100,264 V
Rated supply voltage DC
95,250 V
Short-circuit-proof
yes
Max. output current 1
2 A
Nominal value output voltage 1
24 V
Nominal value output current 1
2 A
SIL according to IEC 61508
None
Country of Origin
Vietnam
