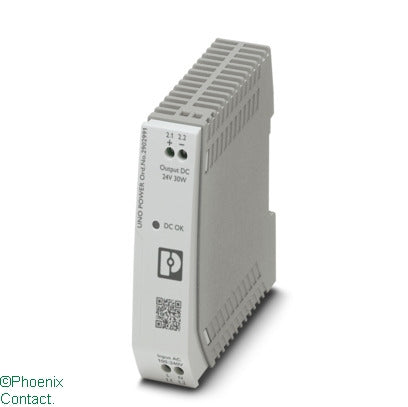

Uno-PS/1AC/24DC/30W Power Supply 24VDC 30W

Uno-PS/1AC/24DC/30W Power Supply 24VDC 30W

by Phoenix
Ideal Part Number PHX2902991 Manufacturer Number 2902991 Barcode 4046356729192

Product Details

Primary-switched UNO POWER power supply for DIN rail mounting, input: 1-phase, output: 24 V DC/30 W
Request a quote for this product

Enter details to get a quote

Technical Specifications

Width
22
Height
90
Depth
84
Built-in height
90
Power consumption
72
Modular version
no
Suitable for safety functions
yes
Voltage type (supply voltage)
AC
Power output
30
Output voltage stabilized
yes
Type of electric connection
Screw connection
Rail mounting possible
yes
Wall mounting possible
no
Stabilized
yes
Degree of protection (IP)
IP20
Direct mounting possible
no
1st secondary output voltage
24,24
Secondary voltage adjustable
no
Rated supply voltage AC 50 Hz
85,240
Rated supply voltage AC 60 Hz
100,264
Short-circuit-proof
yes
Max. output current 1
1
Nominal value output voltage 1
24
Nominal value output current 1
1
SIL according to IEC 61508
None
Country of Origin
Vietnam
Width (unit)
mm
Height (unit)
mm
Depth (unit)
mm
Built-in height (unit)
mm
Power consumption (unit)
VA
Power output (unit)
W
1st secondary output voltage (unit)
V
Rated supply voltage AC 50 Hz (unit)
V
Rated supply voltage AC 60 Hz (unit)
V
Max. output current 1 (unit)
A
Nominal value output voltage 1 (unit)
V
Nominal value output current 1 (unit)
A
