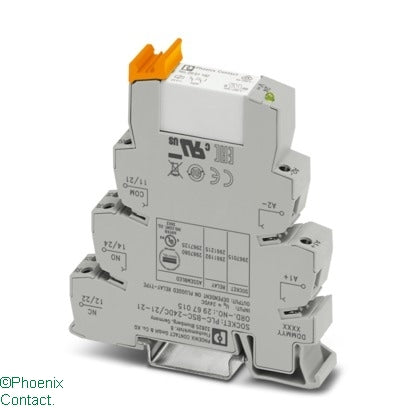

PLC-RSC-24DC/21-21 Relay Complete 24VDC 2Pole
Phoenix

PLC-RSC-24DC/21-21 Relay Complete 24VDC 2Pole

Ideal part number PHX2967060 Manufacturer number 2967060 Barcode 4017918156374
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

PLC-INTERFACE, consisting of basic terminal block PLC-BSC.../21 with screw connection and plug-in miniature relay with power contact, for assembly on DIN rail NS 35/7,5, 2 changeover contacts, input voltage 24 V DC

Technical specifications

Nominal current
0.018 A
Width
14 mm
Height
80 mm
Depth
94 mm
With detachable clamps
no
Drive, polarization
Polarity free
Drive, switching attitude
Mono stable
With forced-guided contacts
no
Type of switch contact
Simple contact
Complete with socket
yes
Type of electric connection
Screw connection
Rated control supply voltage DC
20.2,2 V
Degree of protection
IP20 (Ip: IP20)
With LED indication
yes
Voltage type for actuating
DC
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
0
Number of contacts as change-over contact
2
Country of Origin
Germany
