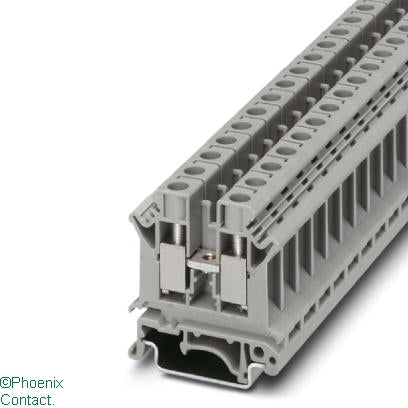

UK 10N Terminal 10mm Grey
Phoenix

UK 10N Terminal 10mm Grey

Ideal part number PHX3005073 Manufacturer number 3005073 Barcode 4017918091019
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Feed-through terminal block, nom. voltage: 800 V, nominal current: 57 A, connection method: Screw connection, Rated cross section: 10 mm², cross section: 0.5 mm² - 16 mm², mounting type: NS 35/7,5, NS 35/15, NS 32, colour: gray

Technical specifications

Mounting method
DIN rail 35 mm
Colour
Grey
Rated voltage
800 V
Operating temperature
105,-60 °C
Inflammability class of insulation material according to with UL94
V0
Closing plate required
yes
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Number of levels
1
Number of clamp positions per level
2
Internally connected stages
no
Connectable conductor cross section solid-core
0.5,16 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.5,6 mm²
Connectable conductor cross section fine-strand without cable end sleeve
0 mm²
Connectable conductor cross section multi-wired
0.5,4 mm²
Material insulation body
Other
Rated current In
57 A
Explosion-tested version 'Ex e'
yes
Country of Origin
China
