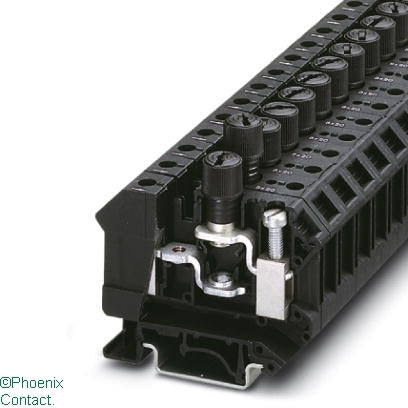

UK 10-DRESHSI (5X20) Fuse Terminal 16mm 5 x 20 Fuse Black
Phoenix

UK 10-DRESHSI (5X20) Fuse Terminal 16mm 5 x 20 Fuse Black

Ideal part number PHX3005109 Manufacturer number 3005109 Barcode 4017918091040
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Fuse modular terminal block, fuse type: Glass / ceramics / ..., fuse type: G / 5 x 20, nom. voltage: 500 V, nominal current: 10 A, number of positions: 1, connection method: Screw connection, Rated cross section: 1.5 mm², cross section:  0.5 mm²- 16 mm², mounting type: NS 35/7,5, NS 35/15, NS 32, colour: black

Technical specifications

Mounting method
DIN rail 35 mm
Colour
Black
Rated voltage
500 V
Operating temperature
105,-60 °C
Inflammability class of insulation material according to with UL94
V0
Closing plate required
no
Type of electrical connection 1
Screw connection
Type of fuse insert
Other
Type of fuse holder
Screwable
Number of levels
1
Connectable conductor cross section solid-core
0.5,16 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0 mm²
Connectable conductor cross section fine-strand without cable end sleeve
0.5,16 mm²
Connectable conductor cross section multi-wired
0.5,4 mm²
Material insulation body
Other
Country of Origin
Poland
