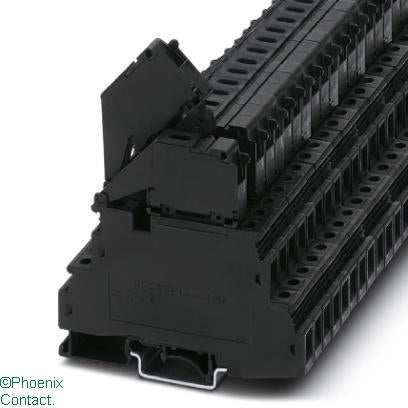

UKK 5-Hesi (5X20) Fuse Terminal 4mm 2Level

UKK 5-Hesi (5X20) Fuse Terminal 4mm 2Level

by Phoenix

Product Details

UKK 5-Hesi (5X20) Modular Fuse Terminal 4.0mm 2Level

Fuse modular terminal block, fuse type: Glass / ceramics / ..., fuse type: G / 5 x 20, nom. voltage: 400 V, nominal current: 32 A, number of positions: 1, connection method: Screw connection, Rated cross section: 4 mm², cross section:  0.2 mm²- 4 mm², connection method: Screw connection, Rated cross section: 1 mm², cross section:  0.2 mm²- 4 mm², mounting type: NS 35/7,5, NS 35/15, NS 32, colour: black
Request a quote for this product

Enter details to request a quote

Technical Specifications

Mounting method
DIN rail 35 mm
Colour
Black
Rated voltage
400 V
Operating temperature
105,-60 °C
Inflammability class of insulation material according to with UL94
V0
Closing plate required
no
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Type of fuse insert
Other
Type of fuse holder
Swivelling
Number of levels
2
Connectable conductor cross section solid-core
0.2,4 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.25,4 mm²
Connectable conductor cross section fine-strand without cable end sleeve
0.2,4 mm²
Connectable conductor cross section multi-wired
0.2,1 mm²
Material insulation body
Other
Country of Origin
Poland
