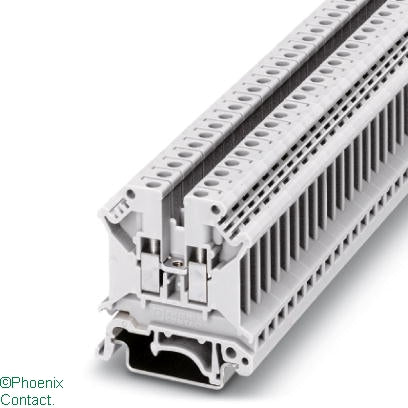

UK 5N WH Terminal 4mm White

UK 5N WH Terminal 4mm White

by Phoenix
Ideal Part Number PHX3007327 Manufacturer Number 3007327 Barcode 4017918371821

Product Details

Feed-through terminal block, nom. voltage: 800 V, nominal current: 32 A, connection method: Screw connection, Rated cross section: 4 mm², cross section: 0.2 mm² - 6 mm², mounting type: NS 35/7,5, NS 35/15, NS 32, colour: white
Request a quote for this product

Enter details to request a quote

Technical Specifications

Mounting method
DIN rail 35 mm
Colour
White
Rated voltage
800 V
Operating temperature
105,-60 °C
Inflammability class of insulation material according to with UL94
V0
Closing plate required
yes
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Number of levels
1
Number of clamp positions per level
2
Internally connected stages
no
Connectable conductor cross section solid-core
0.2,6 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.25,2 mm²
Connectable conductor cross section fine-strand without cable end sleeve
0.2,4 mm²
Connectable conductor cross section multi-wired
0.2,1 mm²
Material insulation body
Other
Rated current In
32 A
Explosion-tested version 'Ex e'
yes
Country of Origin
China
