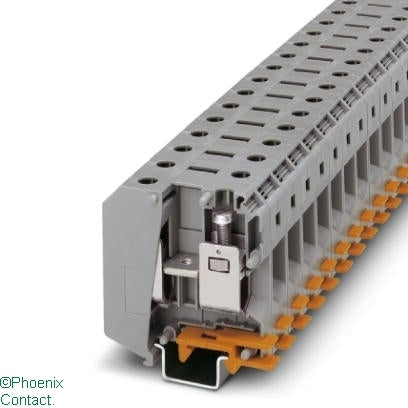

UKH 50 Terminal 50mm Grey

UKH 50 Terminal 50mm Grey

by Phoenix
Ideal Part Number PHX3009118 Manufacturer Number 3009118 Barcode 4017918091644

Product Details

High-current terminal block, nom. voltage: 1000 V, nominal current: 150 A, connection method: Screw connection, Rated cross section: 50 mm², cross section: 16 mm² - 70 mm², mounting type: NS 35/7,5, NS 35/15, NS 32, NS 35/15-2,3, colour: gray
Request a quote for this product

Enter details to request a quote

Technical Specifications

Mounting method
DIN rail 35 mm
Colour
Grey
Rated voltage
1000
Operating temperature
105,-60
Inflammability class of insulation material according to with UL94
V0
Closing plate required
no
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Number of levels
1
Number of clamp positions per level
2
Internally connected stages
no
Connectable conductor cross section solid-core
16,70
Connectable conductor cross section fine-strand with cable end sleeve
25,50
Connectable conductor cross section fine-strand without cable end sleeve
25,70
Connectable conductor cross section multi-wired
10,16
Material insulation body
Other
Rated current In
150
Explosion-tested version 'Ex e'
yes
Country of Origin
India
Rated voltage (unit)
V
Operating temperature (unit)
°C
Connectable conductor cross section solid-core (unit)
mm²
Connectable conductor cross section fine-strand with cable end sleeve (unit)
mm²
Connectable conductor cross section fine-strand without cable end sleeve (unit)
mm²
Connectable conductor cross section multi-wired (unit)
mm²
Rated current In (unit)
A
