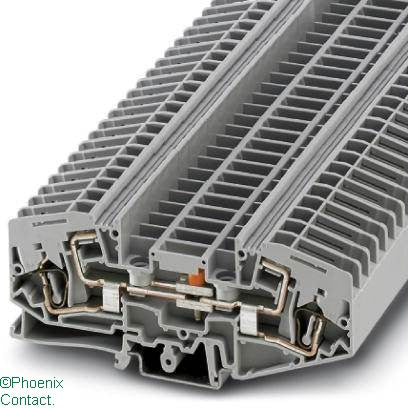

SRTK 6 Test Disconnect Terminal 6mm Spring-cage Grey

SRTK 6 Test Disconnect Terminal 6mm Spring-cage Grey

by Phoenix
Ideal Part Number PHX3029952 Manufacturer Number 3029952 Barcode 4046356169981

Product Details

Test disconnect terminal block, nom. voltage: 400 V, nominal current: 41 A, connection method: Spring-cage connection, 1 level, Rated cross section: 6 mm², cross section: 0.2 mm² - 10 mm² , colour: gray
Request a quote for this product

Enter details to request a quote

Technical Specifications

Mounting method
DIN rail 35 mm
Colour
Grey
Rated voltage
400 V
Operating temperature
105,-60 °C
Inflammability class of insulation material according to with UL94
V0
Type of electrical connection 1
Other
Number of levels
1
Number of clamp positions per level
2
Connectable conductor cross section solid-core
0 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.25,6 mm²
Connectable conductor cross section fine-strand without cable end sleeve
0.2,6 mm²
Material insulation body
Other
Country of Origin
Poland
