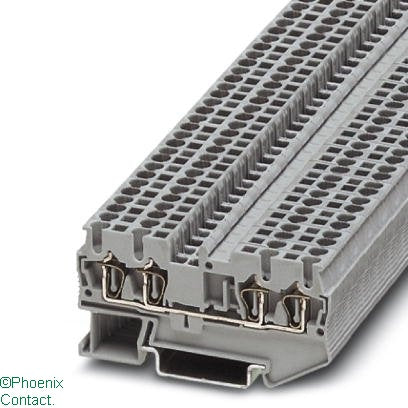

ST 2.5-Quattro Terminal 2.5mm 4Wire Spring Cage Grey
Phoenix

ST 2.5-Quattro Terminal 2.5mm 4Wire Spring Cage Grey

Ideal part number PHX3031306 Manufacturer number 3031306 Barcode 4017918186784
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Feed-through terminal block, nom. voltage: 800 V, nominal current: 24 A, connection method: Spring-cage connection, Rated cross section: 2.5 mm², cross section: 0.08 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, colour: gray

Technical specifications

Mounting method
DIN rail 35 mm
Colour
Grey
Rated voltage
800 V
Operating temperature
105,-60 °C
Inflammability class of insulation material according to with UL94
V0
Closing plate required
yes
Type of electrical connection 1
Other
Type of electrical connection 2
Other
Number of levels
1
Number of clamp positions per level
4
Internally connected stages
no
Connectable conductor cross section solid-core
0.08,4 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.14,2 mm²
Connectable conductor cross section fine-strand without cable end sleeve
0.08,2 mm²
Material insulation body
Other
Rated current In
24 A
Country of Origin
Germany
