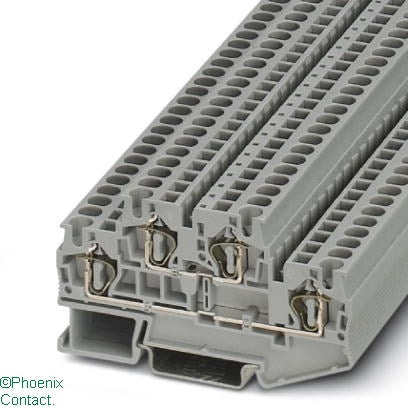

STTB 4 Terminal 4mm 2Level Spring Cage Grey

STTB 4 Terminal 4mm 2Level Spring Cage Grey

by Phoenix

Product Details

Double-level spring-cage terminal block, nom. voltage: 500 V, nominal current: 30 A, connection method: Spring-cage connection, 1st and 2nd level, Rated cross section: 4 mm², cross section: 0.08 mm² - 6 mm², mounting type: NS 35/7,5, NS 35/15, colour: gray
Request a quote for this product

Enter details to request a quote

Technical Specifications

Mounting method
DIN rail 35 mm
Rated voltage
500 V
Operating temperature
105,-60 °C
Inflammability class of insulation material according to with UL94
V0
Closing plate required
yes
Type of electrical connection 1
Other
Type of electrical connection 2
Other
Connectable conductor cross section solid-core
0.08,6 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.14,4 mm²
Connectable conductor cross section fine-strand without cable end sleeve
0.08,4 mm²
Material insulation body
Other
Rated current In
30 A
Country of Origin
Germany
