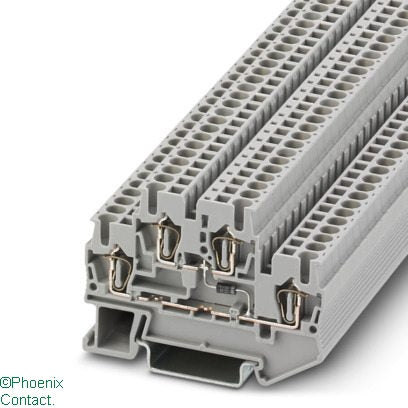

STTB 2.5 DIO/O-U Diode Terminal 2.5mm
Phoenix

STTB 2.5 DIO/O-U Diode Terminal 2.5mm

Ideal part number PHX3031555 Manufacturer number 3031555 Barcode 4017918183097
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Component terminal block, The max. current is determined by the diode. Installed: Diode 1N 4007, reverse voltage: 1300 V, maximum continuous current: 0.5 A., with integrated diode, nom. voltage: 500 V, nominal current: 0.5 A, 1st and 2nd level, connection method: Spring-cage connection, Rated cross section: 2.5 mm², cross section: 0.08 mm² - 4 mm², mounting: NS 35/7,5, NS 35/15, colour: gray

Technical specifications

Mounting method
DIN rail 35 mm
Colour
Grey
Rated voltage
500 V
Operating temperature
105,-60 °C
Inflammability class of insulation material according to with UL94
V0
Closing plate required
yes
Type of electrical connection 1
Other
Number of levels
2
Connectable conductor cross section solid-core
0.08,4 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.14,2 mm²
Connectable conductor cross section fine-strand without cable end sleeve
0.08,2 mm²
Country of Origin
Poland
