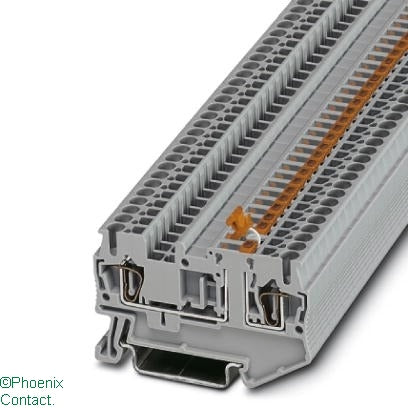

ST 2.5-MT Terminal Knife Disc 4mm Spring Cage Grey

ST 2.5-MT Terminal Knife Disc 4mm Spring Cage Grey

by Phoenix
Ideal Part Number PHX3036343 Manufacturer Number 3036343 Barcode 4017918890391

Product Details

Knife-disconnect terminal block, nom. voltage: 400 V, nominal current: 20 A, 1 level, connection method: Spring-cage connection, Rated cross section: 2.5 mm², cross section: 0.08 mm² - 4 mm², mounting: NS 35/7,5, NS 35/15, colour: gray
Request a quote for this product

Enter details to request a quote

Technical Specifications

Mounting method
DIN rail 35 mm
Colour
Grey
Rated voltage
400 V
Operating temperature
105,-60 °C
Inflammability class of insulation material according to with UL94
V0
Type of electrical connection 1
Other
Number of levels
1
Number of clamp positions per level
2
Connectable conductor cross section solid-core
0.08,4 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.14,2 mm²
Connectable conductor cross section fine-strand without cable end sleeve
0.08,2 mm²
Material insulation body
Other
Country of Origin
Germany
