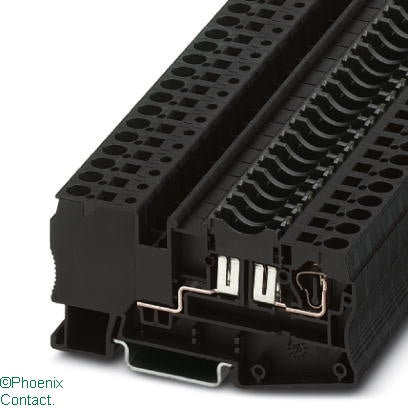

ST 4-FSI/C Fuse Terminal Spring Cage MCB Blade Fuse

ST 4-FSI/C Fuse Terminal Spring Cage MCB Blade Fuse

by Phoenix
Ideal Part Number PHX3036372 Manufacturer Number 3036372 Barcode 4017918890445

Product Details

Fuse modular terminal block, fuse type: Flat, fuse type: C, nom. voltage: 400 V, nominal current: 30 A, connection method: Spring-cage connection, 1 level, Rated cross section: 4 mm², cross section:  0.08 mm²- 6 mm², mounting type: NS 35/7,5, NS 35/15, colour: black
Request a quote for this product

Enter details to request a quote

Technical Specifications

Mounting method
DIN rail 35 mm
Colour
Black
Rated voltage
400 V
Operating temperature
105,-60 °C
Inflammability class of insulation material according to with UL94
V0
Closing plate required
no
Type of electrical connection 1
Other
Type of fuse holder
Pluggable
Number of levels
1
Connectable conductor cross section solid-core
0.08,6 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.14,4 mm²
Connectable conductor cross section fine-strand without cable end sleeve
0.08,4 mm²
Material insulation body
Other
Country of Origin
Turkey
