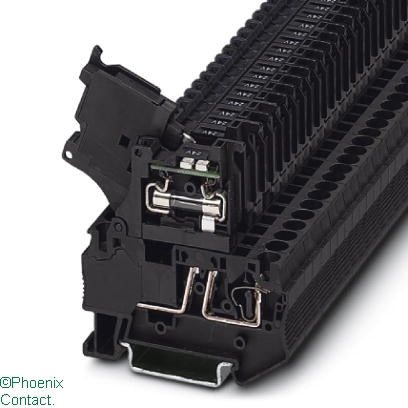

ST 4-HESILED 24 (5X20) Fuse Terminal 4mm 5 x 20 mm LED 24VDC

ST 4-HESILED 24 (5X20) Fuse Terminal 4mm 5 x 20 mm LED 24VDC

by Phoenix
Ideal Part Number PHX3036547 Manufacturer Number 3036547 Barcode 4017918890483

Product Details

Lever-type fuse terminal block, black, for 5mm x 20 mm G fuse inserts, with LED for 24 V AC/DC
Request a quote for this product

Enter details to request a quote

Technical Specifications

Mounting method
DIN rail 35 mm
Colour
Black
Rated voltage
24 V
Operating temperature
105,-60 °C
Inflammability class of insulation material according to with UL94
V0
Closing plate required
no
Type of electrical connection 1
Other
Type of fuse insert
Other
Type of fuse holder
Swivelling
Number of levels
1
Connectable conductor cross section solid-core
0.08,6 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.14,4 mm²
Connectable conductor cross section fine-strand without cable end sleeve
0.08,4 mm²
Material insulation body
Other
Country of Origin
Turkey
