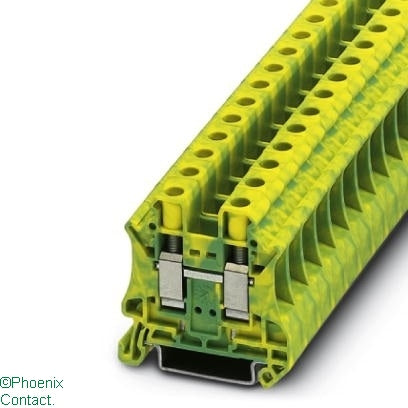

UT 10-PE Terminal Earth 10mm

UT 10-PE Terminal Earth 10mm

by Phoenix

Product Details

Ground modular terminal block, number of connections: 2, connection method: Screw connection, Rated cross section: 10 mm², cross section: 0.5 mm² - 16 mm², mounting type: NS 35/7,5, NS 35/15, colour: green-yellow
Request a quote for this product

Enter details to request a quote

Technical Specifications

Mounting method
DIN rail 35 mm
Colour
Other
Operating temperature
105,-60 °C
Inflammability class of insulation material according to with UL94
V0
Closing plate required
yes
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
PEN function possible
no
Number of levels
1
Number of clamp positions per level
2
Connectable conductor cross section solid-core
0.5,16 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0 mm²
Connectable conductor cross section fine-strand without cable end sleeve
0.5,16 mm²
Connectable conductor cross section multi-wired
0.5,16 mm²
Material insulation body
Other
Country of Origin
Germany
