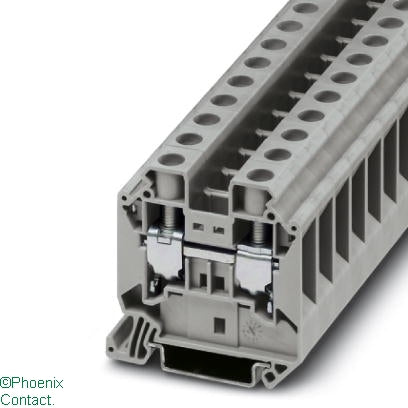

UT 16 Terminal 25mm Grey

UT 16 Terminal 25mm Grey

by Phoenix
Ideal Part Number PHX3044199 Manufacturer Number 3044199

Product Details

Feed-through terminal block, nom. voltage: 1000 V, nominal current: 76 A, connection method: Screw connection, Rated cross section: 16 mm², cross section: 1.5 mm² - 25 mm², mounting type: NS 35/7,5, NS 35/15, colour: gray
Request a quote for this product

Enter details to request a quote

Technical Specifications

Mounting method
DIN rail 35 mm
Colour
Grey
Rated voltage
1000
Operating temperature
105,-60
Inflammability class of insulation material according to with UL94
V0
Closing plate required
yes
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Number of levels
1
Number of clamp positions per level
2
Internally connected stages
no
Connectable conductor cross section solid-core
1.5,25
Connectable conductor cross section fine-strand with cable end sleeve
1,16
Connectable conductor cross section fine-strand without cable end sleeve
1.5,25
Connectable conductor cross section multi-wired
1,6
Material insulation body
Other
Rated current In
76
Explosion-tested version 'Ex e'
yes
Country of Origin
Turkey
Rated voltage (unit)
V
Operating temperature (unit)
°C
Connectable conductor cross section solid-core (unit)
mm²
Connectable conductor cross section fine-strand with cable end sleeve (unit)
mm²
Connectable conductor cross section fine-strand without cable end sleeve (unit)
mm²
Connectable conductor cross section multi-wired (unit)
mm²
Rated current In (unit)
A
