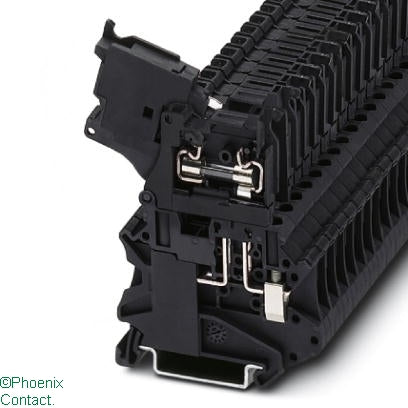

UT 4-HESI (5X20) Fuse Terminal 4mm 6.3A 5 x 20

UT 4-HESI (5X20) Fuse Terminal 4mm 6.3A 5 x 20

by Phoenix
Ideal Part Number PHX3046032 Manufacturer Number 3046032 Barcode 4017918956578

Product Details

Fuse modular terminal block, fuse type: Glass / ceramics / ..., fuse type: G / 5 x 20, nom. voltage: 500 V, nominal current: 6.3 A, connection method: Screw connection, Rated cross section: 4 mm², cross section:  0.14 mm²- 6 mm², mounting type: NS 35/7,5, NS 35/15, colour: black
Request a quote for this product

Enter details to request a quote

Technical Specifications

Mounting method
DIN rail 35 mm
Colour
Black
Rated voltage
500 V
Operating temperature
105,-60 °C
Inflammability class of insulation material according to with UL94
V0
Closing plate required
no
Type of electrical connection 1
Screw connection
Type of fuse insert
Other
Type of fuse holder
Swivelling
Number of levels
1
Connectable conductor cross section solid-core
0.14,6 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.14,4 mm²
Connectable conductor cross section fine-strand without cable end sleeve
0.14,6 mm²
Connectable conductor cross section multi-wired
0.14,1 mm²
Material insulation body
Other
Country of Origin
Germany
