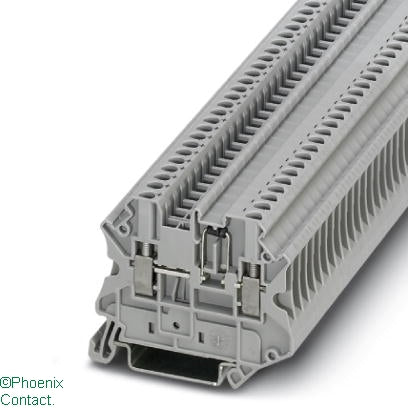

UT 2 5-MTD-DIO/L-R Component Terminal 2.5mm with Diode Grey

UT 2 5-MTD-DIO/L-R Component Terminal 2.5mm with Diode Grey

by Phoenix

Product Details

Component terminal block, The max. current is determined by the diode. Installed: Diode 1N 4007, reverse voltage: 1300 V, maximum continuous current: 0.5 A., with integrated diode, nom. voltage: 800 V, nominal current: 0.5 A, connection method: Screw connection, Rated cross section: 2.5 mm², cross section: 0.14 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, colour: gray
Request a quote for this product

Enter details to request a quote

Technical Specifications

Mounting method
DIN rail 35 mm
Colour
Grey
Rated voltage
800 V
Operating temperature
105,-60 °C
Inflammability class of insulation material according to with UL94
V0
Type of electrical connection 1
Screw connection
Number of levels
1
Number of clamp positions per level
2
Connectable conductor cross section solid-core
0.14,4 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.14,2 mm²
Connectable conductor cross section fine-strand without cable end sleeve
0.14,4 mm²
Connectable conductor cross section multi-wired
0.14,1 mm²
Material insulation body
Other
Country of Origin
Poland
