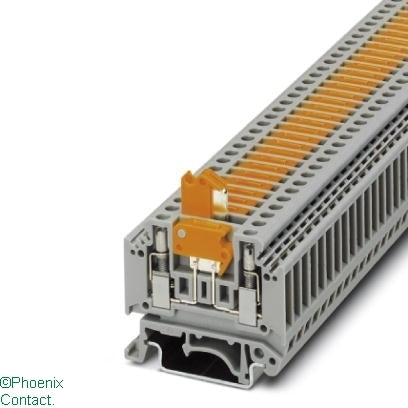

MTK-P/P Terminal Knife Disconnect with Test Sockets
Phoenix

MTK-P/P Terminal Knife Disconnect with Test Sockets

Ideal part number PHX3104013 Manufacturer number 3104013 Barcode 4017918092689
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Knife-disconnect terminal block, With test socket screws for insertion of test plugs, nom. voltage: 400 V, nominal current: 16 A, connection method: Screw connection, Rated cross section: 2.5 mm², cross section: 0.2 mm² - 4 mm², mounting: NS 35/7,5, NS 35/15, NS 32, colour: gray

Technical specifications

Mounting method
DIN rail 35 mm
Colour
Grey
Rated voltage
400 V
Operating temperature
105,-60 °C
Inflammability class of insulation material according to with UL94
V0
Type of electrical connection 1
Screw connection
With integrated test socket
yes
Number of levels
1
Number of clamp positions per level
2
Connectable conductor cross section solid-core
0.2,4 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.25,2 mm²
Connectable conductor cross section fine-strand without cable end sleeve
0.2,2 mm²
Connectable conductor cross section multi-wired
0.2,1 mm²
Material insulation body
Other
Country of Origin
Poland
