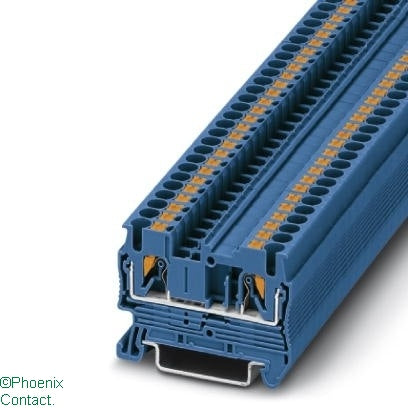

PT 2.5 BU Terminal 2.5mm Push In Blue

PT 2.5 BU Terminal 2.5mm Push In Blue

by Phoenix
Ideal Part Number PHX3209523 Manufacturer Number 3209523 Barcode 4046356329798

Product Details

PT 2.5 BU Terminal 2.5mm Push In Blue

Feed-through terminal block, nom. voltage: 800 V, nominal current: 24 A, connection method: Push-in connection, Rated cross section: 2.5 mm², cross section: 0.14 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, colour: blue
Request a quote for this product

Enter details to request a quote

Technical Specifications

Mounting method
DIN rail 35 mm
Colour
Blue
Rated voltage
800 V
Operating temperature
105,-60 °C
Inflammability class of insulation material according to with UL94
V0
Closing plate required
yes
Type of electrical connection 1
Other
Type of electrical connection 2
Other
Number of levels
1
Number of clamp positions per level
2
Internally connected stages
yes
Connectable conductor cross section solid-core
0.14,4 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.14,2 mm²
Connectable conductor cross section fine-strand without cable end sleeve
0.14,4 mm²
Material insulation body
Other
Rated current In
24 A
Explosion-tested version 'Ex e'
yes
Country of Origin
Germany
