PT 2.5-MT Terminal Knife Disconnect 2.5mm Grey

PT 2.5-MT Terminal Knife Disconnect 2.5mm Grey

by Phoenix

Product Details

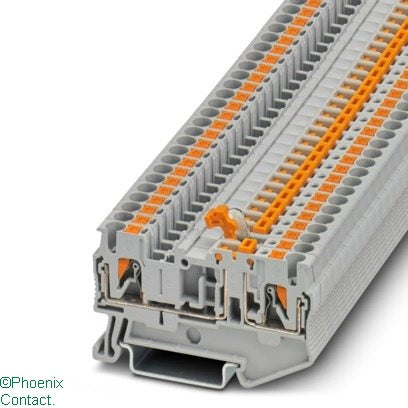

PT 2.5-MT Terminal Knife Disconnect 2.5mm Grey

Knife-disconnect terminal block, nom. voltage: 400 V, nominal current: 20 A, connection method: Push-in connection, Rated cross section: 2.5 mm², cross section: 0.14 mm² - 4 mm², mounting: NS 35/7,5, NS 35/15, colour: gray
Request a quote for this product

Enter details to request a quote

Technical Specifications

Mounting method
DIN rail 35 mm
Colour
Grey
Rated voltage
400 V
Operating temperature
105,-60 °C
Inflammability class of insulation material according to with UL94
V0
Type of electrical connection 1
Other
Number of levels
1
Number of clamp positions per level
2
Connectable conductor cross section solid-core
0.14,4 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.14,2 mm²
Connectable conductor cross section fine-strand without cable end sleeve
0.14,4 mm²
Material insulation body
Other
Country of Origin
Poland
