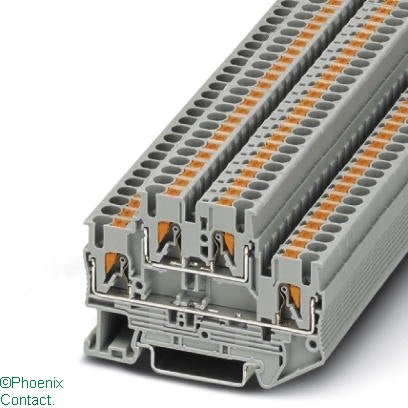

PTTB 2.5 Terminal 2.5mm Double-Level

PTTB 2.5 Terminal 2.5mm Double-Level

by Phoenix

Product Details

PTTB 2.5 Terminal Block 2.5mm Double-Level

Double-level terminal block, nom. voltage: 500 V, nominal current: 22 A, connection method: Push-in connection, 1st and 2nd level, Rated cross section: 2.5 mm², cross section: 0.14 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, colour: gray
Request a quote for this product

Enter details to request a quote

Technical Specifications

Mounting method
DIN rail 35 mm
Colour
Grey
Rated voltage
500 V
Operating temperature
105,-60 °C
Inflammability class of insulation material according to with UL94
V0
Closing plate required
yes
Type of electrical connection 1
Other
Type of electrical connection 2
Other
Number of levels
2
Number of clamp positions per level
4
Internally connected stages
no
Connectable conductor cross section solid-core
0.14,4 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.14,2 mm²
Connectable conductor cross section fine-strand without cable end sleeve
0.14,4 mm²
Material insulation body
Other
Rated current In
22 A
Explosion-tested version 'Ex e'
yes
Country of Origin
China
