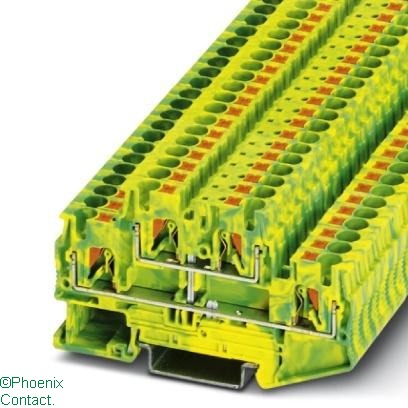

PTTB 4-PE Terminal Earth 4mm Double Level Green-Yellow

PTTB 4-PE Terminal Earth 4mm Double Level Green-Yellow

by Phoenix

Product Details

Protective conductor double-level terminal block, connection method: Push-in connection, 1st and 2nd level, cross section: 0.2 mm² - 6 mm², mounting type: NS 35/7,5, NS 35/15, colour: green-yellow
Request a quote for this product

Enter details to request a quote

Technical Specifications

Mounting method
DIN rail 35 mm
Colour
Other
Operating temperature
105,-60 °C
Inflammability class of insulation material according to with UL94
V0
Closing plate required
yes
Type of electrical connection 1
Other
Type of electrical connection 2
Other
PEN function possible
no
Number of levels
2
Number of clamp positions per level
4
Connectable conductor cross section solid-core
0.2,6 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.25,4 mm²
Connectable conductor cross section fine-strand without cable end sleeve
0.2,6 mm²
Connectable conductor cross section multi-wired
0.2,6 mm²
Material insulation body
Other
Country of Origin
China
