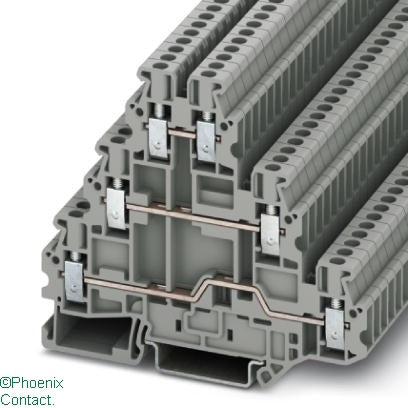

UT 2.5-3L Terminal 2.5mm 3 Level
Phoenix

UT 2.5-3L Terminal 2.5mm 3 Level

Ideal part number PHX3214259 Manufacturer number 3214259 Barcode 4046356575409
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

UT 2.5-3L Terminal 2.5mm 3 Level

Multi-level terminal block, nom. voltage: 500 V, nominal current: 19 A, connection method: Screw connection, Rated cross section: 2.5 mm², cross section: 0.14 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, colour: gray

Technical specifications

Mounting method
DIN rail 35 mm
Rated voltage
500 V
Operating temperature
105,-60 °C
Inflammability class of insulation material according to with UL94
V0
Closing plate required
yes
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Connectable conductor cross section solid-core
0.14,4 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.14,2 mm²
Connectable conductor cross section fine-strand without cable end sleeve
0.14,4 mm²
Material insulation body
Other
Rated current In
19 A
Country of Origin
Poland
